Conecta180 (เปิด 180 องศา)
- 180° opening with reduced return, allowing the extraction of drawers or pull-out elements without spacers.
- Concealed hinge with recessed insertion in the door and in the side.

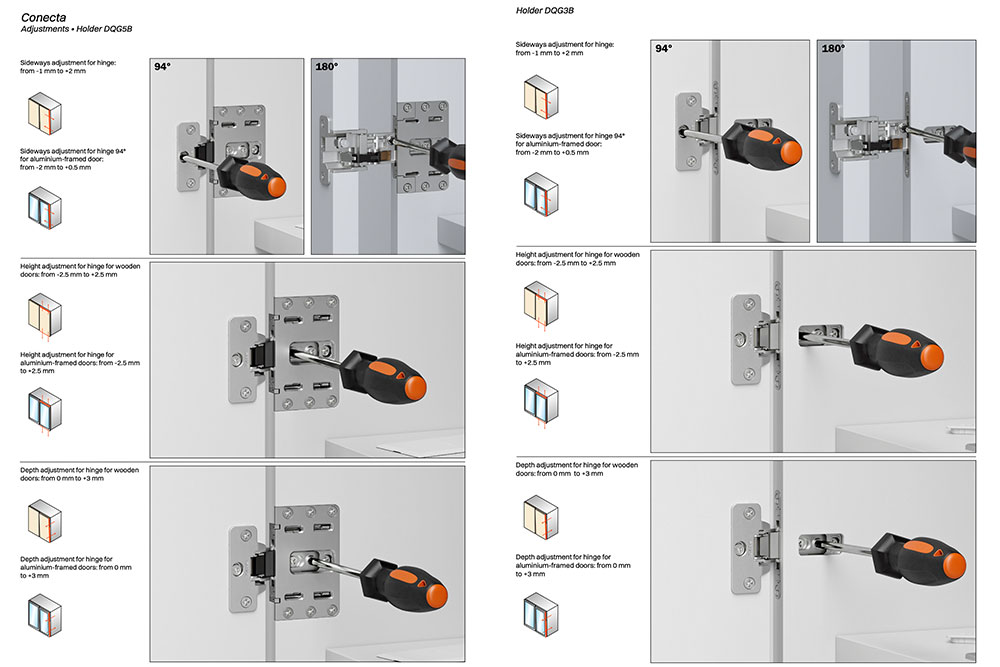

- Adjustments:
– Sideways adjustment: -1 mm +2 mm
– Height adjustment: -2.5 mm +2.5 mm
– Depth adjustment: 0 mm +3 mm
- Rapid fixing of the door to the cabinet side

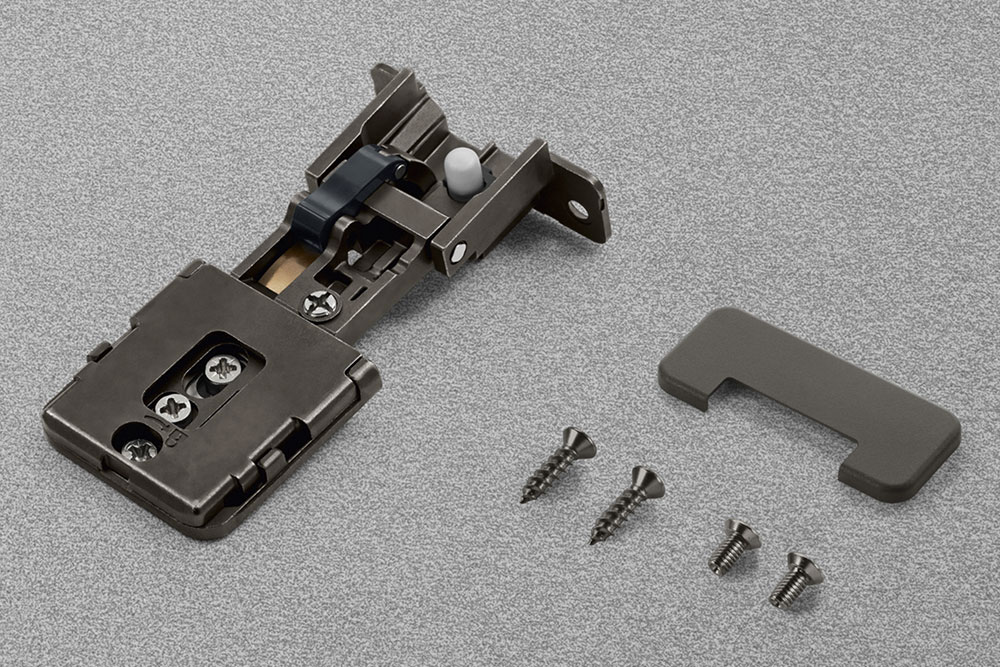

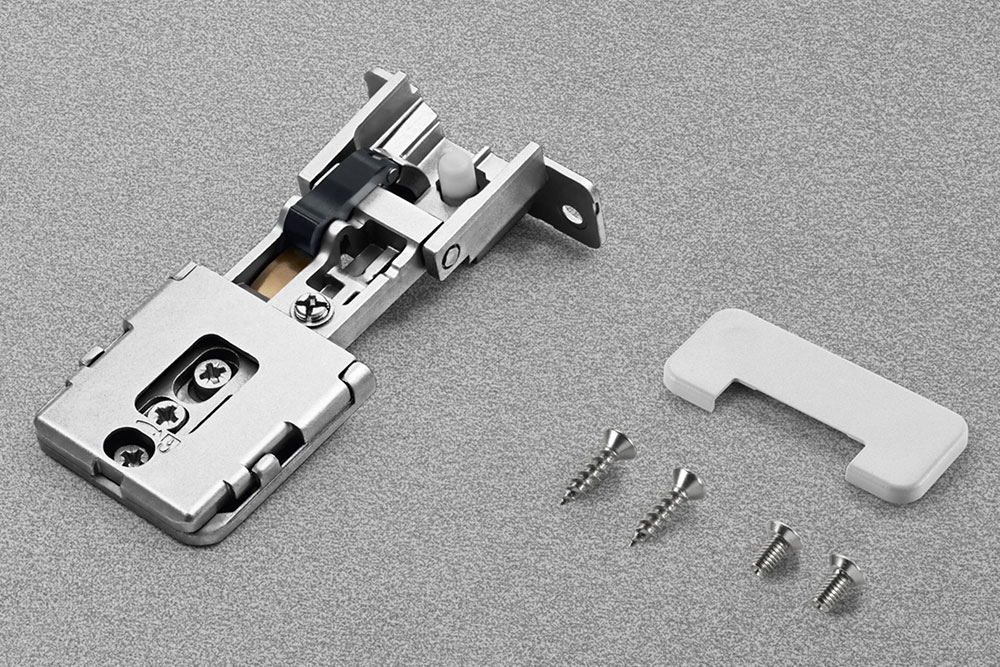

- Concealed CQAIJE hinge – 180° opening:

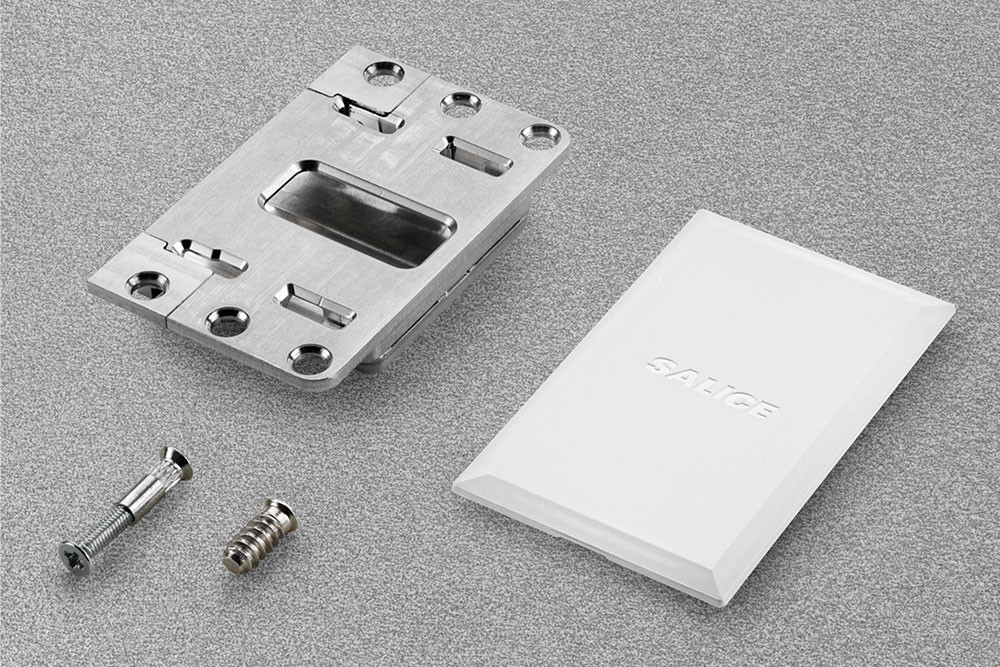

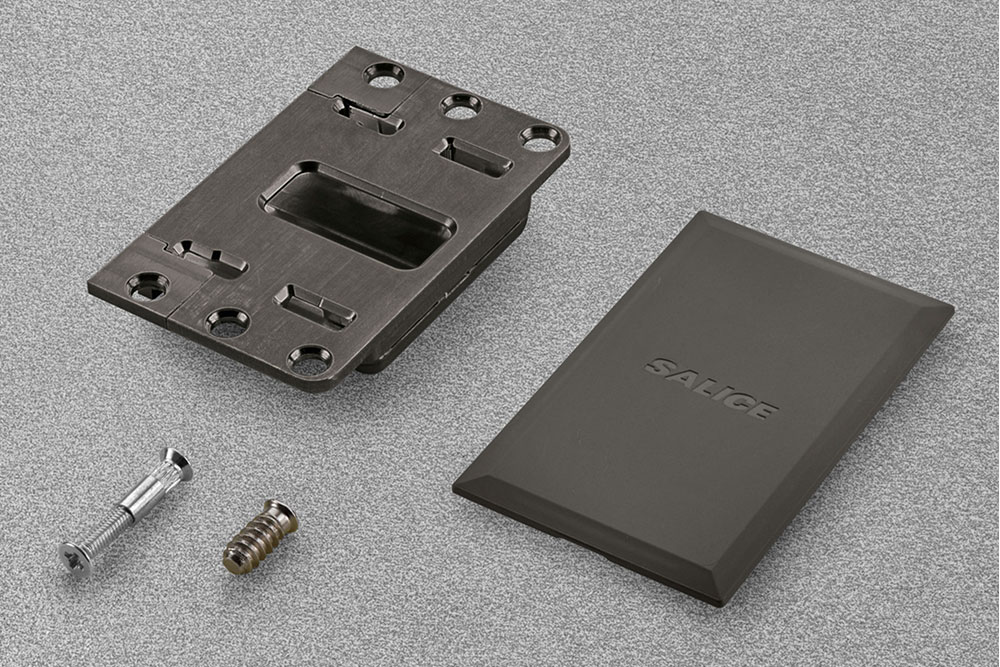

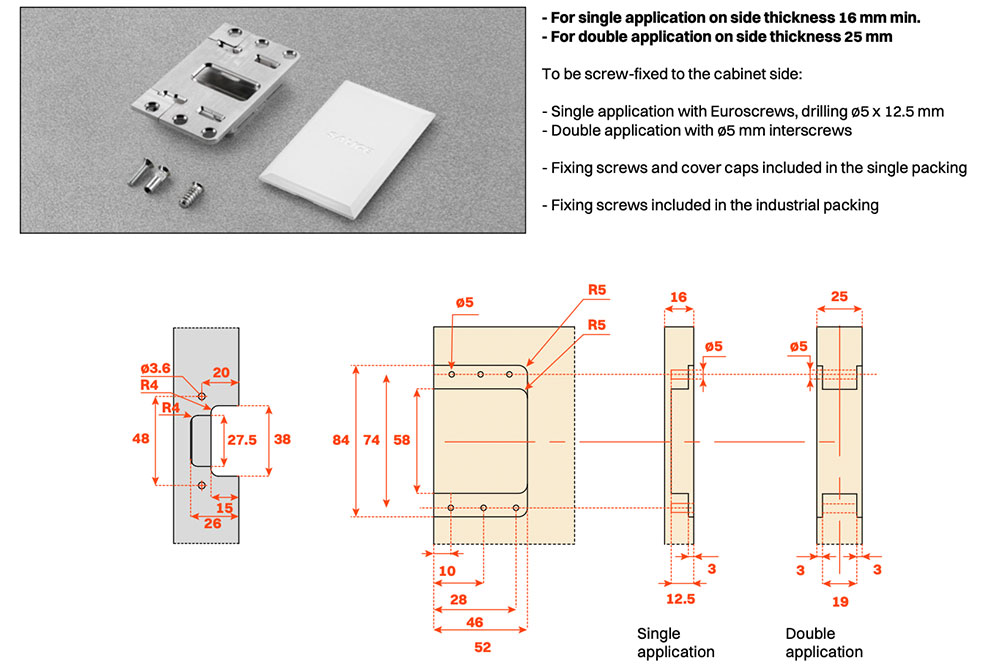

– Door overlay on the side 10 mm with holder DQG5
– Door overlay on the side 12,5 mm with holder DQG3

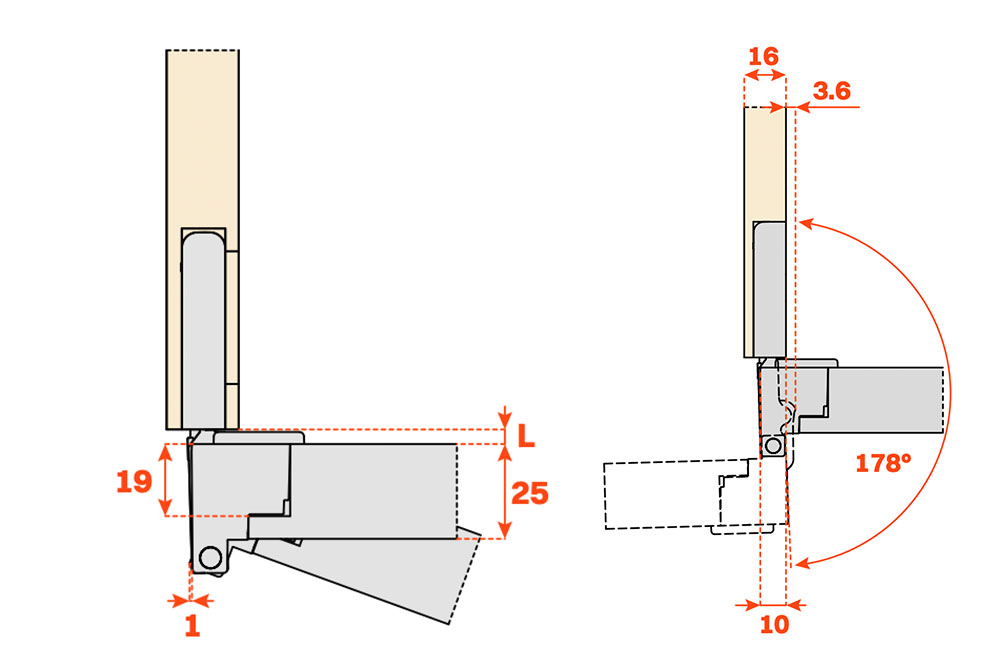

– Depth of the metal cup: 19 mm
